Economic Corrugated Roof Sheet Roll Forming Machine
description1
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Description
Main specifications
Rolling Speed: 0-12m/min(cutting time is not include)
Steel sheet Thickness: 0.3-0.8mm galvanized sheet, color painted coils
Steel sheet Thickness: 0.3-0.8mm galvanized sheet, color painted coils

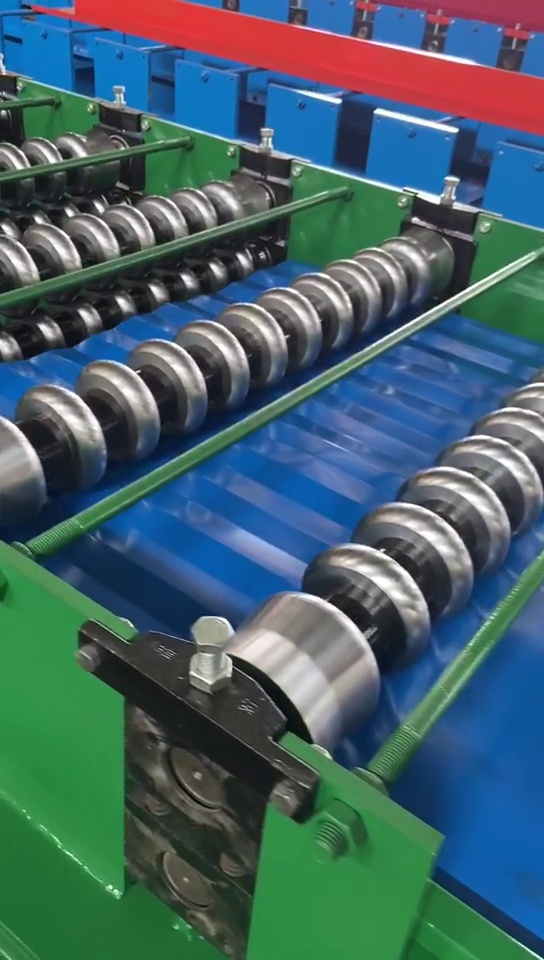

Roller Stations: about 18 stations
Roller Material : 45#forge steel, coated with chrome
Shaft Material and DIA:￠75mm,material is 45# forge steel, Chrome with quenching
Maim Motor Power: 7.5kw
Hydraulic Station Power: 5.5kw
Hydraulic Station Power: 5.5kw
Hydraulic Pressure: 12Mpa
Material Of The Stations: Wall plate thickness 16mm
Tolerance: +1.5mm
Power supplier: 380V, 50HZ, 3 phases
Power supplier: 380V, 50HZ, 3 phases
Machine weight: about 5 tons
Profile Drawing
Optional configuration
Optional Configuration For Your Choice
-
DecolierDouble Heads Decoiler
A type decoiler
Manual Decoiler
Hydraulic Decoiler
-
StructureWall panel
Torri Structure
Cast Iron
-
DriveChain
Gear
Gearbox
Couplings Gearbox
-
CoolingWater cooling
Fan cooling
-
PunchingHydraulic punching
Hydraulic press
Punching press
-
CuttingHydraulic stop cutting
Servo Following Cutting
Stop Saw cutting
Fly saw cutting
-
Out tableManual table
Simple pneumatic table
Automatic stacker
Magnetic stacker
-
OtherCassette
Plastic film
Fleece devce
Pre-cutting
