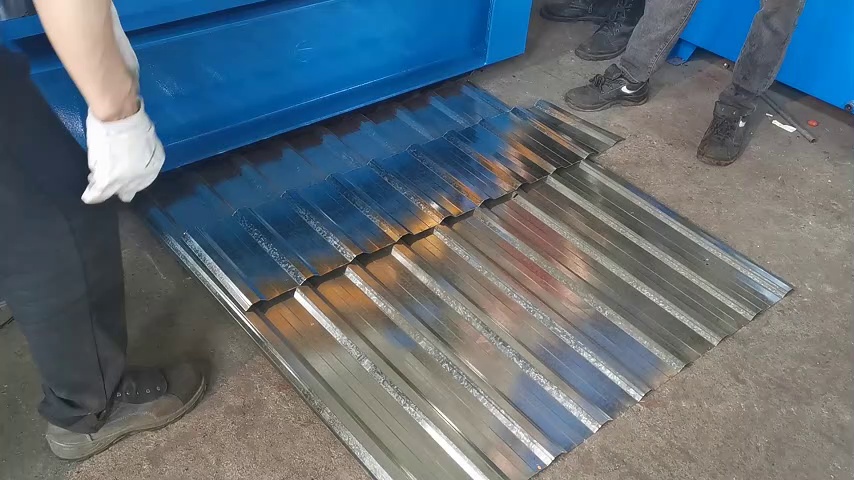

C8 C10 C20 C21 PPGI Metal Iron Wall Roof Panel Sheet Roll Forming Machine

Email: info@suhangmachine.com

Tel: 008613606193016

Whatsapp: 8613606193016

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Specification

Main Features:

Georgia Russia Kyrgyzstan Uzbekistan Tajikistan Azerbaijan and Ukraine: C8 C9 C10 C15 C18 C20 C21 C44

C8 roll sheet is lightweight which is very convenient for installation. For example, when building a fence from a profiled sheet C8-1150-0.6, the weight of one square meter of the fence will be only 5.57 kg. The same applies to the roof the less weight roofing, the cheaper the truss system.

1.Technical parameter

Rolling Speed: 8-12m/min

Steel sheetThickness: 4-0.8mm,galvanized steel and color painted sheets

Control System: PLC

Roller Stations:about 20 stations

Roller Material : 45# forge steel, coated with chrome

Shaft Material and DIA: ￠72mm,material is 45# forge steel, Chrome with quenching

Maim Motor Power:5kw

Hydraulic Pressure:12Mpa

Tolerance:+1.5mm

Power supplier: 380V, 50HZ,3 phaseor customized as customer’s requirement

Way Of Drive:1inch single chain

Color Of The Machine:blue or customized

2.Machine List

5 tons passive de-coiler	1 set
Main roll forming machine	1 set
PLC Control box	1 unit
Hydraulic cutting device	1 unit
4 meters out put tables	1 unit
Safety cover	1 set
Spare parts	1 package
