0.3-0.8mm Metal Siding Trim J Channel J Trim Roll Forming Machine

Email: info@suhangmachine.com

Tel: 008613606193016

Whatsapp: 8613606193016

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

This machine to produce J channel, J-channel has traditionally been used as trim around windows and doors during vinyl and aluminum siding installations, along with being used quite frequently for soffit. It can also be used to finish areas where horizontal siding dead ends into another material, this lines include 3 tons manual decoiler, roll forming system, hydraulic cutting and finished tables.

	Items	Specifications
Material of coil	Material Thickness	0.3-0.8mm galvanized sheet full hard 85-95, G550, PPGI
Forming system	Rolling Speed	0-10 m/min( without the cutting time)
	Roller Stations	About 16-18 stations
	Roller Material	45# Steel with quenching 60mm shaft
	Maim Motor Power	5.5 kw
	Hydraulic cutting Power	4 kw
	Bearing	Rubber sealing bearing

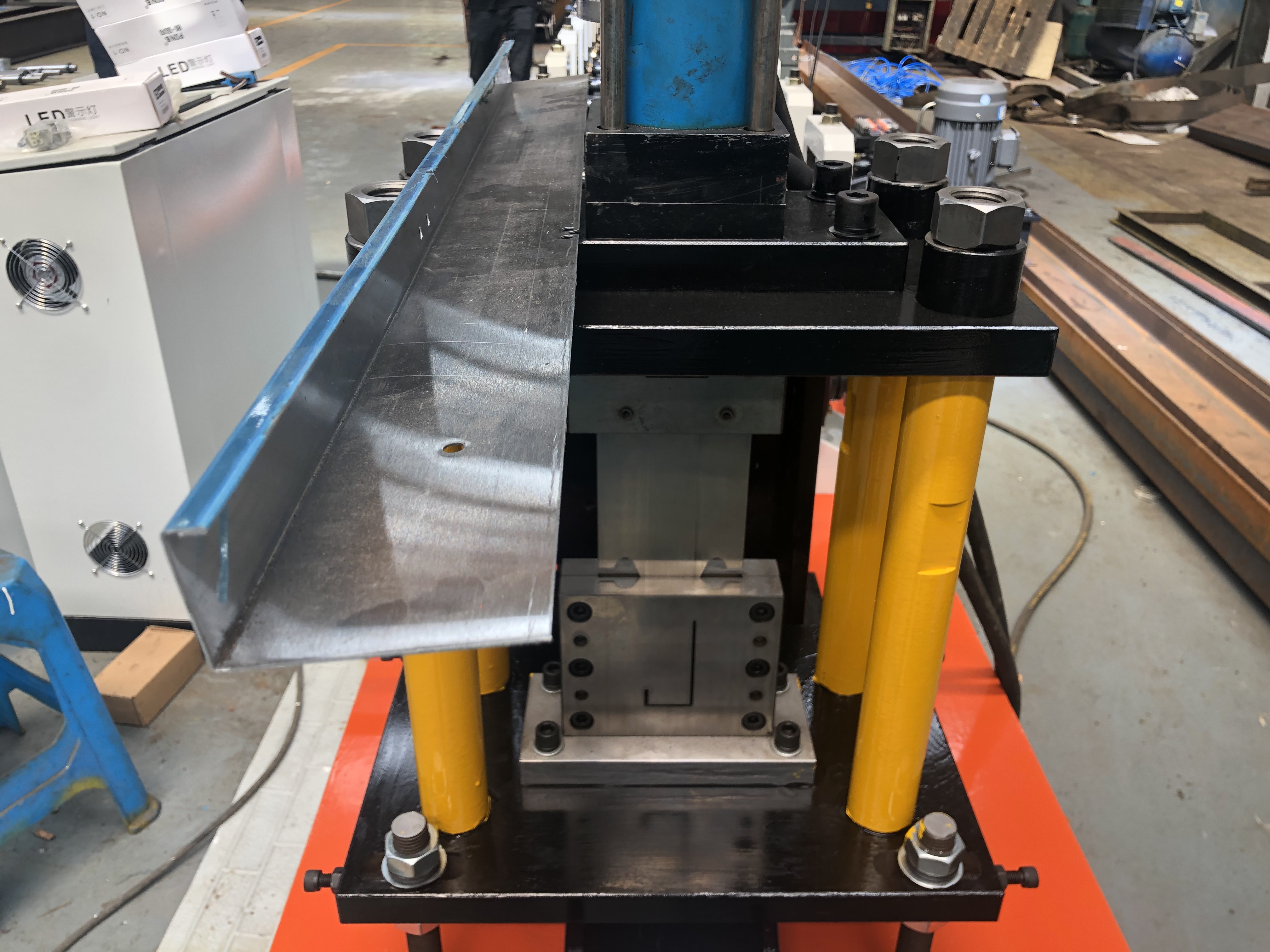

Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRB 85-95
	Tolerance	+-1.5mm
	Cutting way	Stop cutting
Electrical control system	Electric Source	220V, 60HZ,3 phase Also can satisfy Customer’s require
	Control System	PLC Delta
	Inverter	Delta
	Weight	About 2.5 tons
	Way Of Drive	1 inch single chain
	Size of machine	Length 7500mm* Width 800mm* Height 500m
	MOTOR	Under the frame of the machine

Machine list	3 ton passive de-coiler	1 set
	Main roll forming machine	1 set
	Cutting device	1 set
	PLC Control box	1 unit
	Hydraulic station	1 unit
	Out table	1 unit

Application

The use of these 'J' Channels has long been helpful in interior applications, such as drywall and interior cladding terminations.

Most commonly, j trim metal is used to cap the top edges of skirting, the top and sides of doors, the bottom and sides of windows, and in many cases the top of windows for aesthetics and continuity.
