Triple Layer Roof Panel Roll Forming Machine
Main Features:
This triple layer roll forming machine is an economic plan, the working speed is 10-12 meters/minutes.
1.Technical parameter
Rolling Speed: 10 meters/minutes
Feeding width: 1000mm or 1220mm, according to customer's requirements
Steel sheet Thickness: 0.3-0.8mm galvanized sheet
Control System: PLC
Roller Stations: about 9-11stations
Roller Material : 45# forge steel, coated with chrome
Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome with quenching
Motor Power:5.5 kw main motor
Hydraulic power: 4kw
Hydraulic Pressure: 12Mpa
Tolerance: +1.5mm
Power supplier: According to Customer’s Requirements
Way Of Drive:Chain Driven
2.Machine List
|
Machine list |
5 tons hydraulic de-coiler |
1 set |
|
Main roll forming machine |
1 set |
|
|
PLC Control box |
1 unit |
|
|
Hydraulic station |
1 unit |
|
|
Safety cover |
1 set |
|
|
Spare parts |
1 set |
3.Technical process
Decoiler → Feeding →roll forming →cutting →Output tables

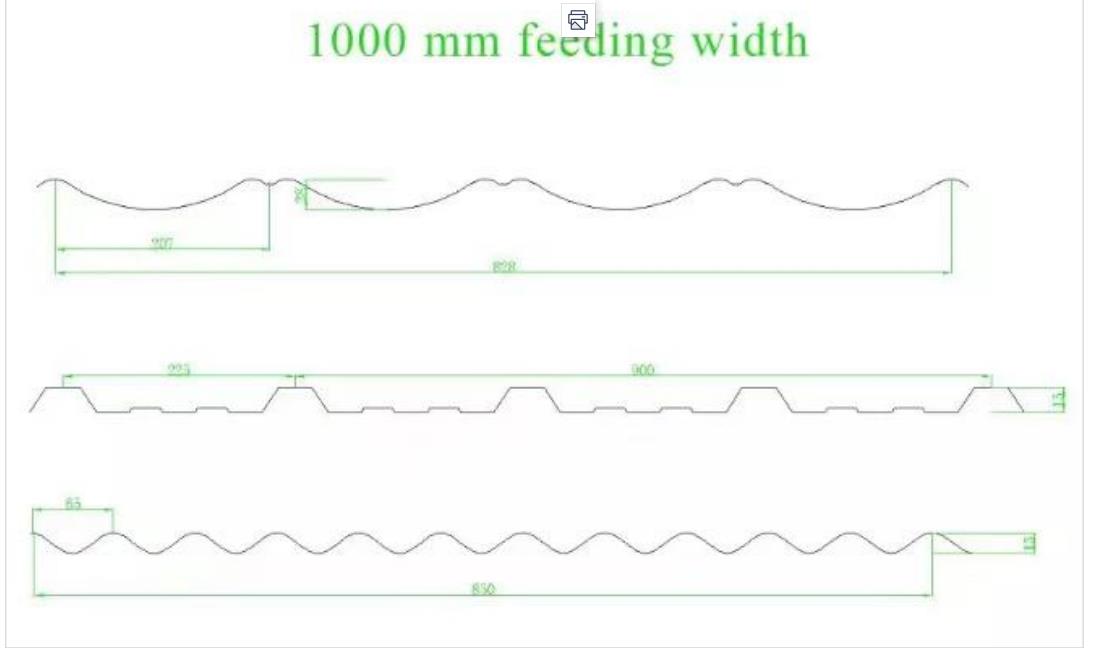

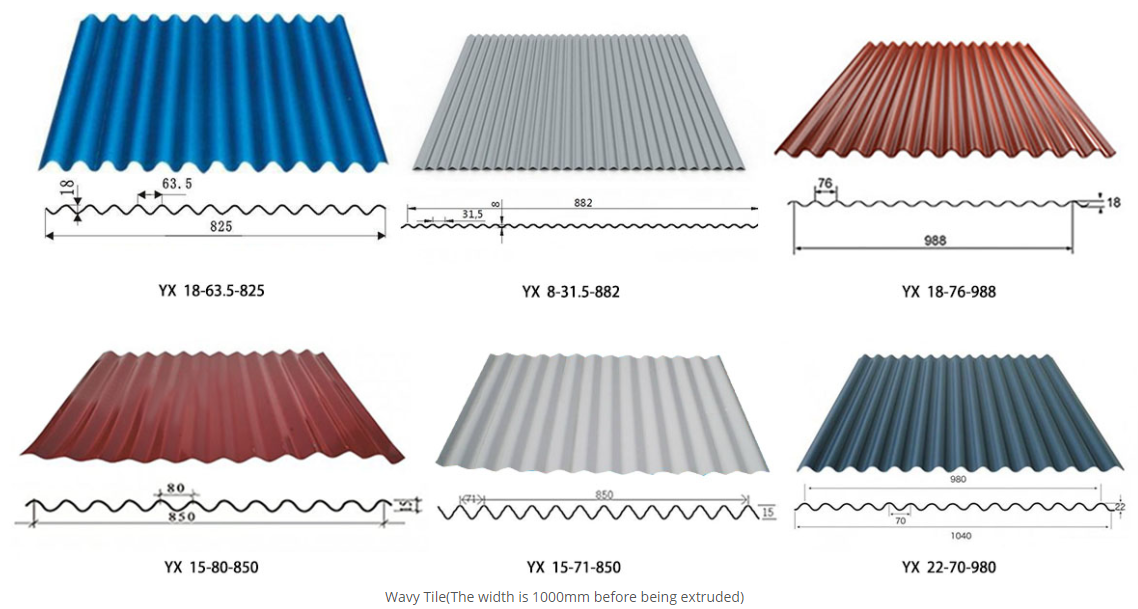

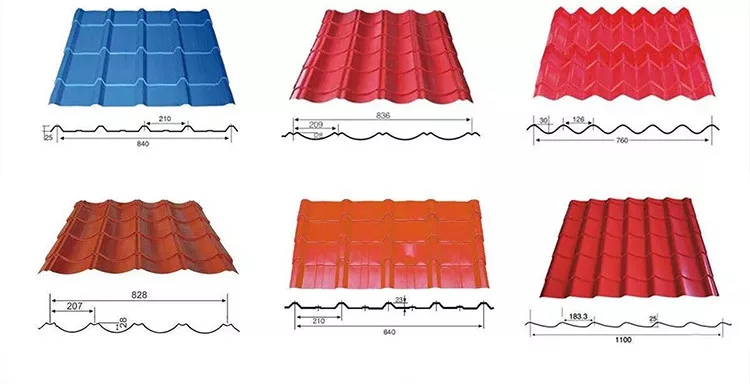

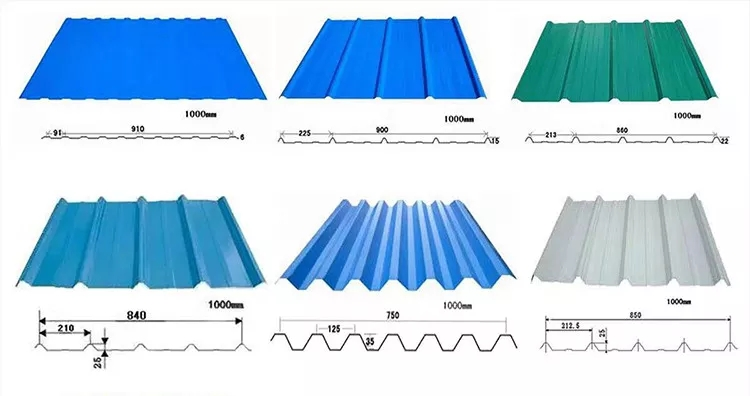

4. Profile design
.jpg)
.jpg)
.jpeg?x-oss-process=image/resize,w_100/quality,q_100)
