The technique data

1. Materials to form shutter door : 1.2-2mm, Galvanized coils

2. Forming steps: about 18 steps

3. Material of rollers:  GCr15 steel, precision-machined, high frequency quenching HRC58-62, diameter of rollers: ＞￠150

4. Material of main shaft : 45# high quality steel (diameter＞￠50)

5. Chains’ material: 45# steel, high frequency quenching, circular pitch:38.1; number of teeth: 13

6. Cutting : hydraulic cutting; quenching HRC58-62

7. Electronic control: PLC control Panasonic Japanese brand

8. Dimension of machine: 4500mmX500mmX800mm

9. Drive system: chain drive

10. Main motor power:7.5KW

11. Working speed:12-15m/min;

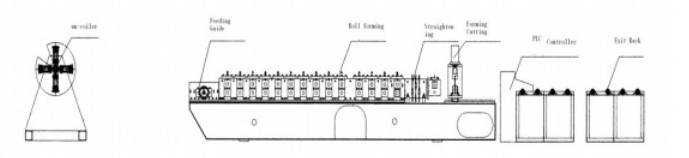

Working flow

decoiler—→level device—→main roll forming machine—→hydraulic cutting—→ run out table

Our display screen is touch screen, not text touch screen.

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The  machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
