Product Details

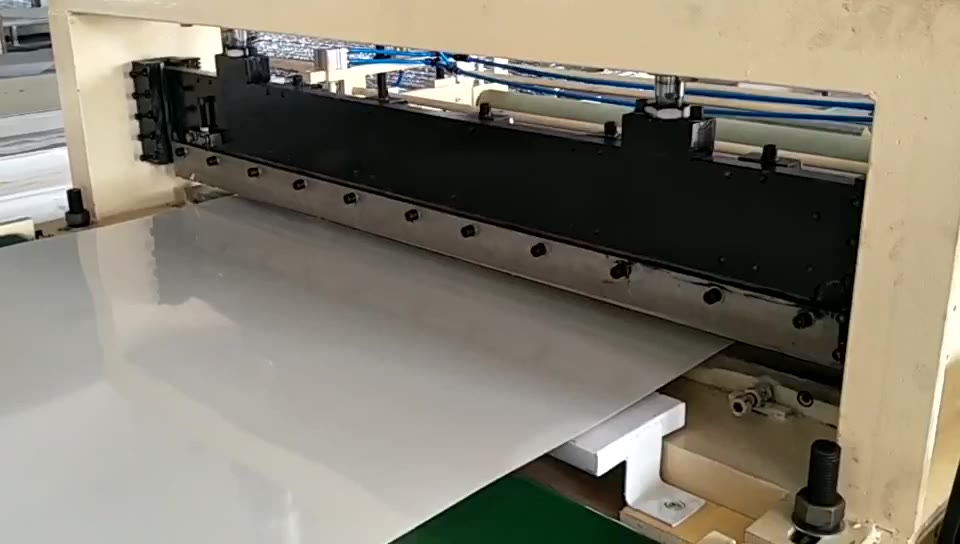

Simple Slitting & cut to length machine is used to slit & cut off thin material. It's cost effective solution.
It can finish decoiling, leveling, slitting, cutting, etc
Working Flow
It can finish decoiling, leveling, slitting, cutting, etc
Working Flow
Decoiling →Feeding guide→ Slitting →Cut to length→ Supporting table
| Sequence | Item | Parameter | Remark | |
|
1 |
material | Type | Pre-Painted, Galvanized Sheet |
|
| Yield Strength(Mpa) | 235Mpa |
|
||
| Thickness(mm) | 0.2-1.2mm | |||
| Slitting width(mm) | 80mm—1250mm |
|
||
| 2 | Working speed (m/min) | Adjustable 0-20 m/min |
|
|
| 3 | Slitting blade | 9 pcs | Cr12 Mould Steel | |
| 4 | 5 Ton Uncoiler Hydraulic station(KW) | 2.2 | According to final design | |
| 5 | 9-Roll Leveler motor power(KW) | 5.5 | According to final design | |
| 6 | Cutter Hydraulic Station power(KW) | 1.5 | According to final design | |
| 7 | Total power(KW) | 9.2 | According to final design | |
| 8 | Power | AC380V,50Hz,3 phase |
|
|
| 9 | Dimension(L×W×H m) | 5×2.5×2 | According to final | |
Application
