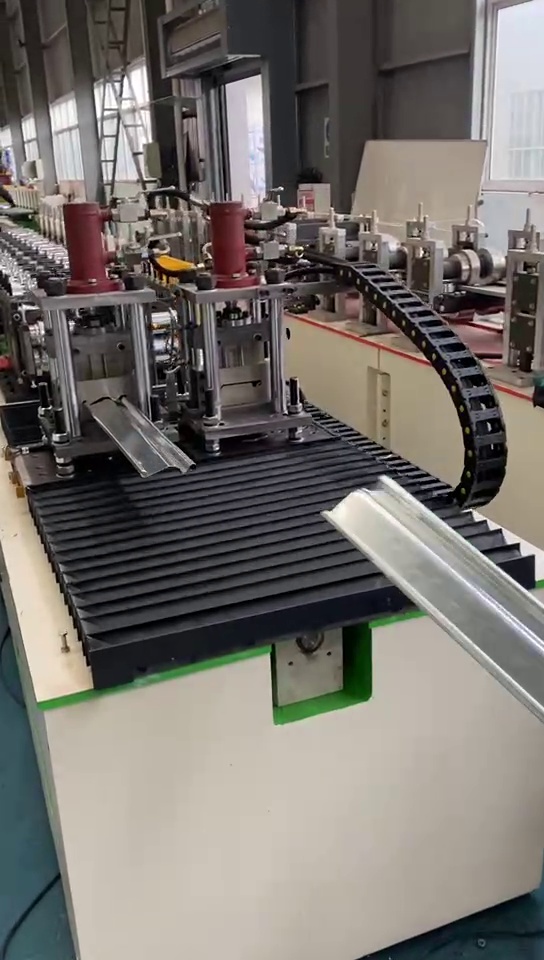

This high speed metal rolling shutter door roll forming machine can reach to 30 meters/minute with servo following cutting.

The shutter door roll forming machine consists of decoiler, feeding and levelling device, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system).

Long production line, good profile shape on final products; Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision.

Technical Data:

1、Materials to form shutter door : 0.7-1.2mm, Galvanized coils

2、Forming steps: about 12 steps

3、Material of rollers: GCr15 steel, precision-machined, high frequency quenching HRC58-62, diameter of rollers: ＞￠150

4、Material of main shaft : 45# high quality steel (diameter＞￠50)

5、Chains’ material: 45# steel, high frequency quenching

6、Cutting : hydraulic cutting; quenching HRC58-62

7、Electronic control: PLC control Delta Brand

8、Dimension of machine: 5500mmX500mmX800mm

10、Drive system: chain drive, 5.5KW main motor power, working speed: 0-30 meters/minute

Machine List:

Name	Quantity (set)
De-coiler	1set
Level device	1set
Servo Following Cutting	1set
Main roll forming machine	1set
Run out table	1 set
Control Box	1set
Spare Parts	1 Package
