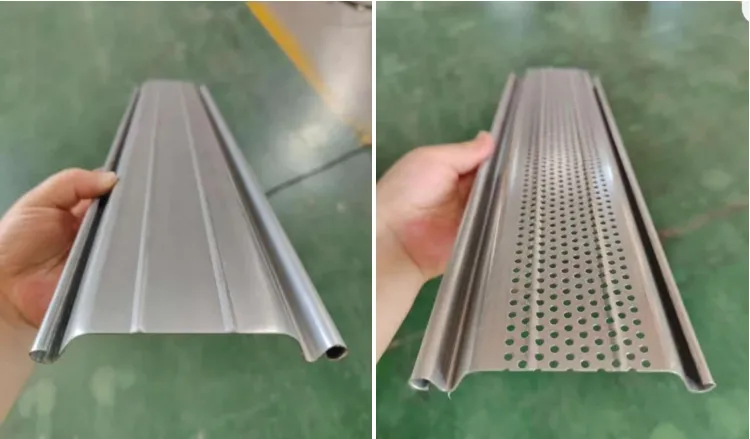

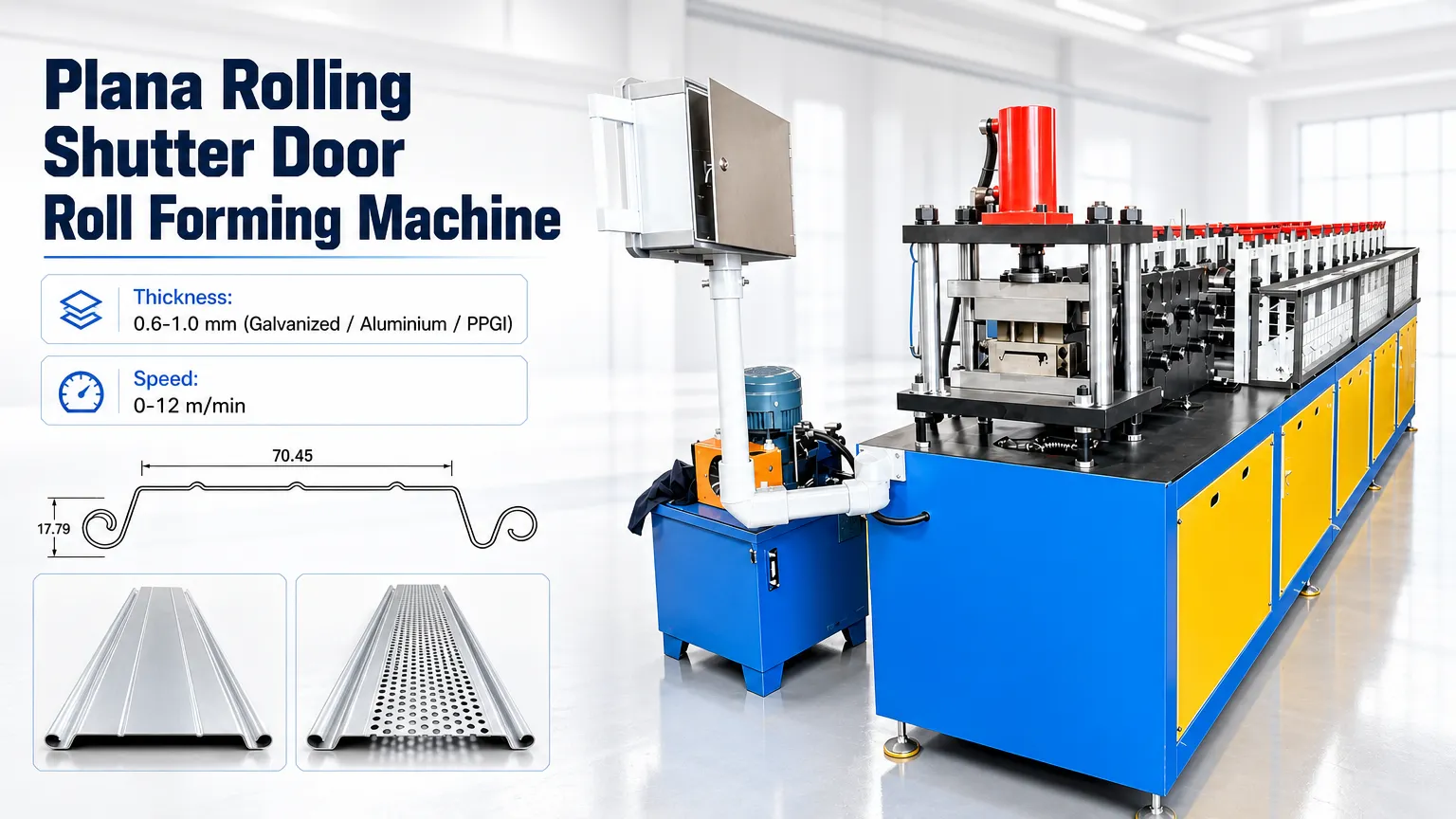

This Plana rolling shutter door roll forming machine supports optional punching line configuration, you can choose the machine with or without punching line according to your production requirements. It can process 0.6-1.0mm a wide range of raw materials including Aluminum, Galvanized steel, PPGI and Stainless Steel. The full line completes feeding, roll forming, punching (if equipped) and cutting automatically.
|
S.N
|
Equipment name
|
Quantity
|
||
|
1
|
3 tons passive decoiler
|
1 set
|
||
|
2
|
Main roll forming machine
|
1 set
|
||
|
3
|
Hydraulic Cutting Device
|
1 unit
|
||
|
4
|
PLC Control box
|
1 unit
|
||
|
5
|
Hydraulic station
|
1 unit
|
||
|
6
|
Out tables
|
2 units
|
||
|
7
|
Safety cover
|
1 set
|
||
|
8
|
Spare parts
|
1 Package
|
||
Perforation line (optional)
|
S.N
|
Equipment name
|
Quantity
|
||
|
1
|
3 Ton electrical De-coiler
|
1 set
|
||
|
2
|
Servo feeder
|
1 set
|
||
|
3
|
Punching press(J23-25A)
|
1 set
|
||
|
4
|
Punching mould
|
1 set
|
||
|
5
|
Tension station
|
1 set
|
||
|
6
|
Recoiler
|
1 set
|
||
|
7
|
Control box
|
1 set
|
||
Machine Specification:
|
1
|
Material Thickness
|
0.6-1.0mm Galvanized steel, Aluminium,PPGI
|
||
|
2
|
Working Speed
|
About 0-12 m/min
|
||
|
3
|
Forming Steps
|
About 12 stations
|
||
|
4
|
Material of Roller
|
Gcr15
|
||
|
5
|
Driven system
|
Chain driven
|
||
|
6
|
Main motor power
|
7.5 KW
|
||
|
7
|
Cutting type
|
Hydraulic cutting
|
||
|
8
|
Material of cutting
|
Cr12Mov
|
||
|
9
|
Electronic control
|
PLC control
|
||
|
10
|
Hydraulic Station Power
|
4 KW
|
||

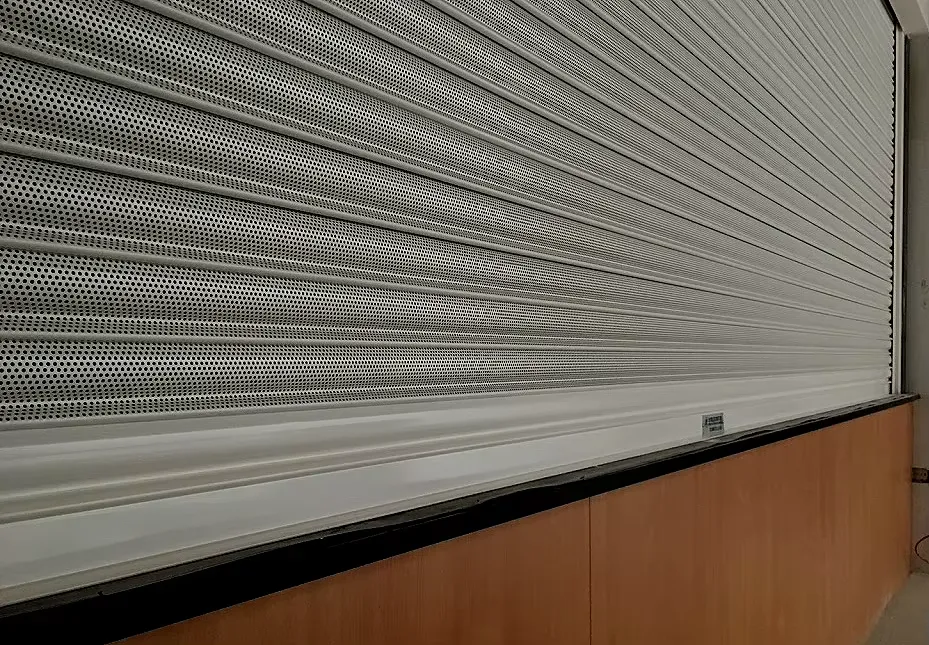

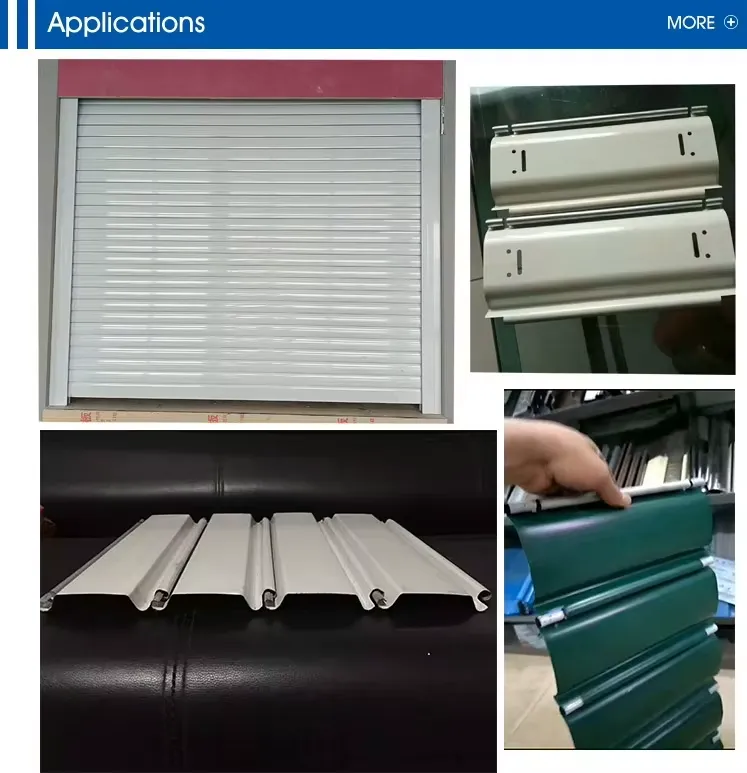

1. Commercial Storefront Security Shutters
Manufacture metal shutter slats for retail shop fronts, shopping mall outlets to provide anti-theft and dustproof protection.
2. Industrial Warehouse & Factory Rolling Shutters
Produce heavy-duty roller shutter profiles for factory workshops, storage warehouses, logistics cargo bays.
3. Garage Roller Shutters
Make durable shutter slats for residential and commercial garage roller doors.
4. Other Security Rolling Shutter Projects
Suitable for carports, kiosks, and other enclosure rolling shutter applications.
