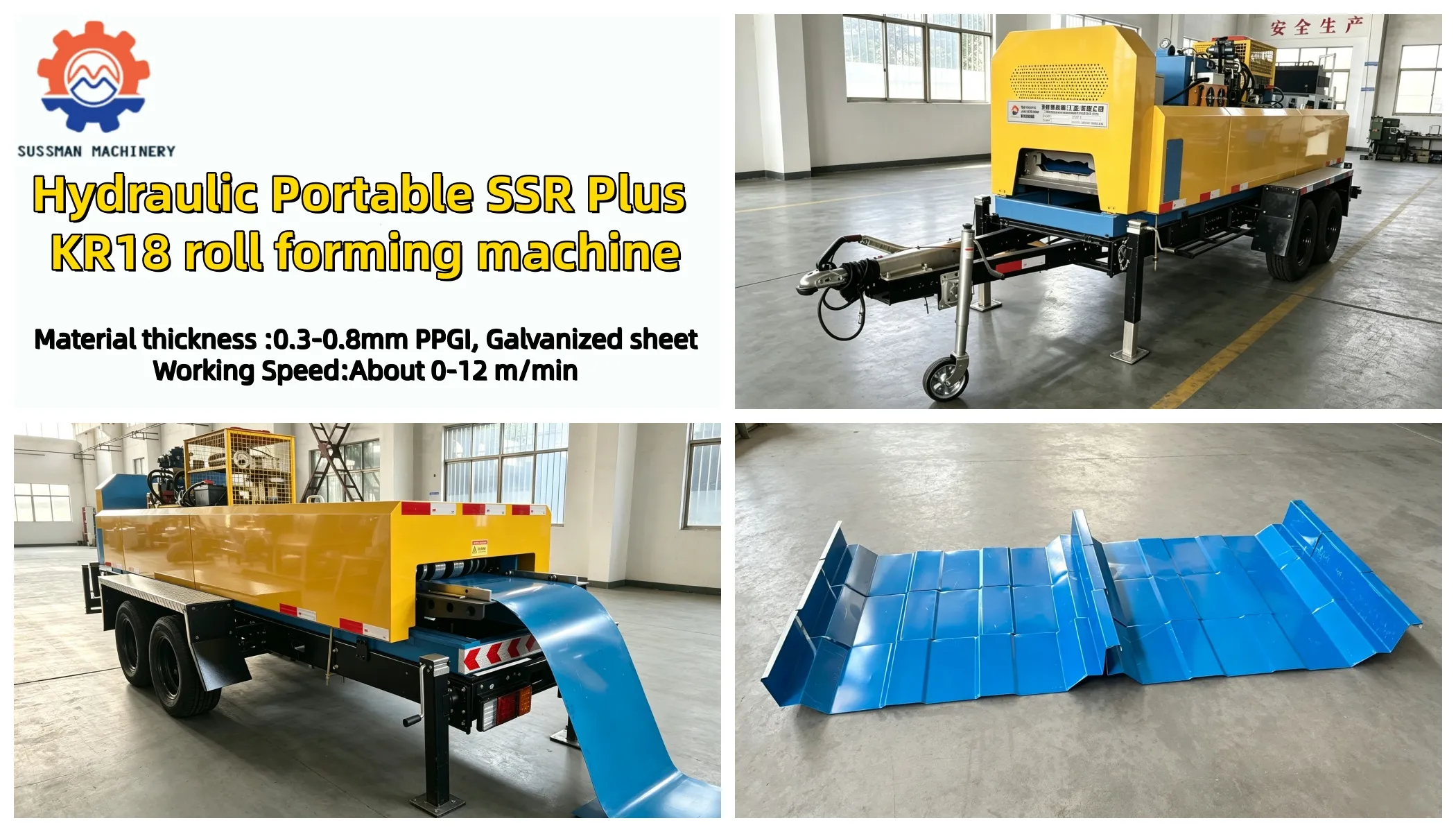

This trailer-mounted SSR Plus standing seam roll forming machine adopts petrol engine power supply, supporting direct on-roof production of standing seam metal roof panels. It works for material thickness from 0.3mm to 0.8mm, compatible with PPGI and galvanized sheet. The machine package includes a seamer machine for roof panel locking. Two sets of roof clips are provided as optional accessories to meet different installation requirements.

Thanks to its mobile trailer design, the whole unit can be transported easily to construction sites. Fabricating panels directly on the roof avoids the risk of bending and damage during long panel transportation, and saves handling costs. It is widely used for various metal roofing projects such as warehouses, factories, workshops, agricultural buildings and commercial buildings.

1	Material Thickness	0.3-0.8mm PPGI, Galvanized sheet
2	Working Speed	About 0-12m/min
3	Forming Steps	About 9 stations
4	Material of Roller	45#forge steel, coated with chrome
5	Driven system	By chain
6	Electrical motor	24P
7	Cutting type	Hydraulic cutting
8	Material of cutting	Cr12Mov with quench HRC58-62°
9	Electronic control	PLC control
10	Power device	Petrol engine

1. Commercial Building Roofing
Ideal for standing seam metal roof projects on shopping malls, office buildings and exhibition halls. The machine fabricates panels directly on roof to fit large-span roof requirements.

4. Public & Municipal Construction Projects
Great for stations, gymnasiums and other public facilities. Mobile forming reduces transportation damage of long metal roof panels.



Solution Advantages

1. Comprehensive After-sales Service
We promptly handle all equipment issues for customers. Remote technical guidance is available, and professional technicians can be dispatched for on-site commissioning to deliver satisfying service.


2. On-time Delivery Guarantee
Reasonable production schedules are formulated to arrange manufacturing orderly. We strictly control progress to ensure goods delivery as scheduled.


3. Complete Spare Parts Supply
Original matching accessories are fully provided, facilitating daily replacement and maintenance to keep machines running steadily.


4. Strict Quality Inspection
All products undergo multi-standard testing before delivery. Every detail is checked rigorously to guarantee reliable overall equipment quality.
