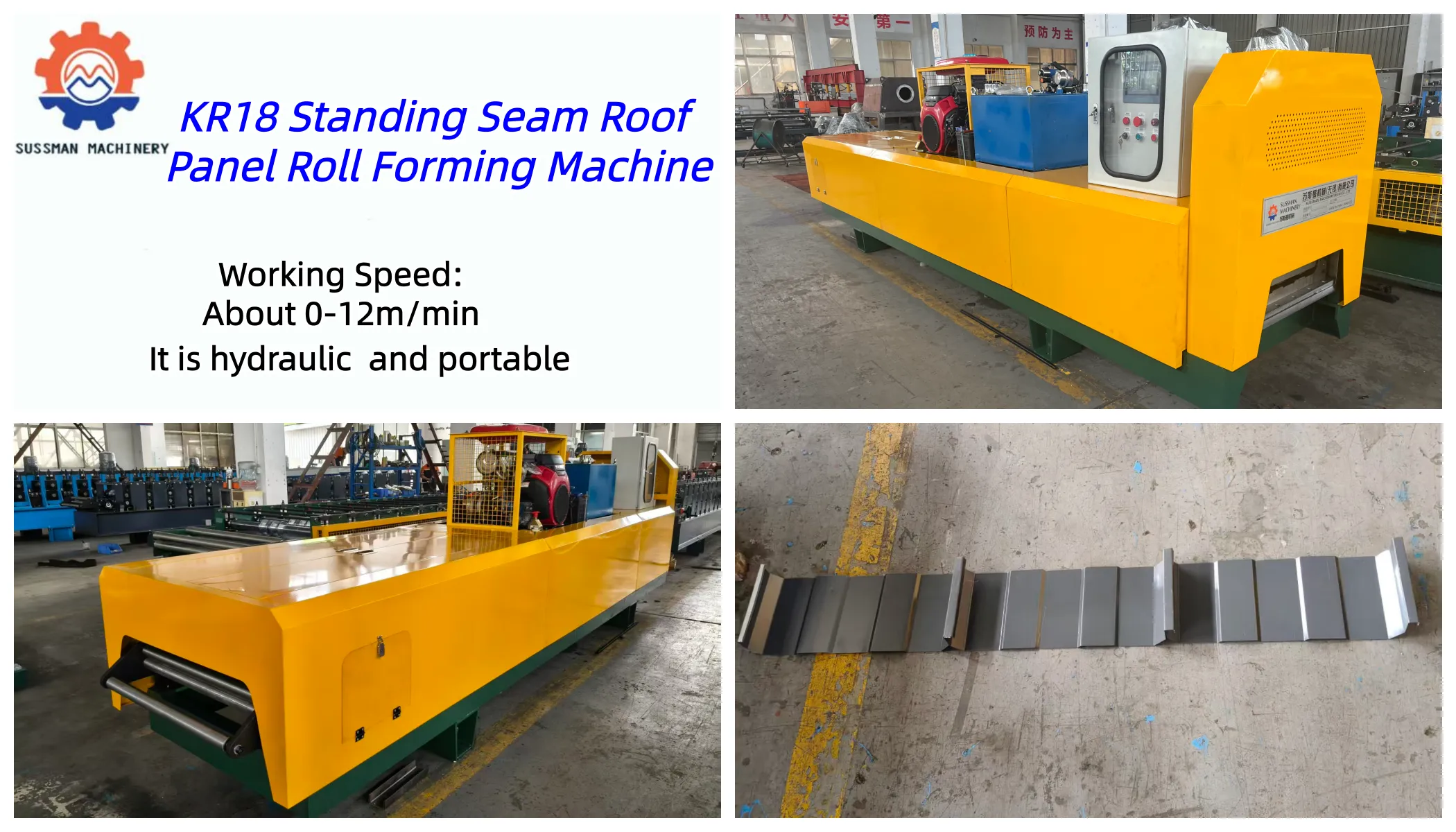

This hydraulic portable KR18 standing seam roll forming machine features robust hydraulic cutting system and compact portable frame, equipped with reliable petrol engine for outdoor construction without power supply. It processes 0.3mm-0.8mm raw materials, supporting color painted coils and aluminum coils.
|
S.N
|
Equipment name
|
Quantity
|
||
|
1
|
5 ton passive decoiler
|
1 set
|
||
|
2
|
Main roll forming machine
|
1 set
|
||
|
3
|
Hydraulic Cutting Device
|
1 set
|
||
|
4
|
Petrol engine
|
1 set
|
||
|
5
|
Seamer for roof and Wall with 2 sets of clamps(optional)
|
1 set
|
||
|
6
|
Trailer(optional)
|
1 set
|
||
|
7
|
PLC Control box
|
1 unit
|
||
|
8
|
Hydraulic station
|
1 unit
|
||
|
9
|
Out tables
|
2 units
|
||
|
10
|
Safety cover
|
1 set
|
||
|
11
|
Spare parts
|
1 Package
|
||
|
1
|
Material Thickness
|
thickness 0.3mm-0.8mm, galvanized steel, color steel, PPGI
|
||
|
2
|
Working Speed
|
About 0-12m/min
|
||
|
3
|
Forming Steps
|
About 8 stations
|
||
|
4
|
Material of Roller
|
45#forge steel, coated with chrome
|
||
|
5
|
Driven system
|
By chain
|
||
|
6
|
Electrical motor
|
24P
|
||
|
7
|
Cutting type
|
Hydraulic cutting
|
||
|
8
|
Material of cutting
|
Cr12Mov with quench HRC58-62°
|
||
|
9
|
Electronic control
|
PLC control
|
||
|
10
|
Power device
|
Petrol engine
|
||

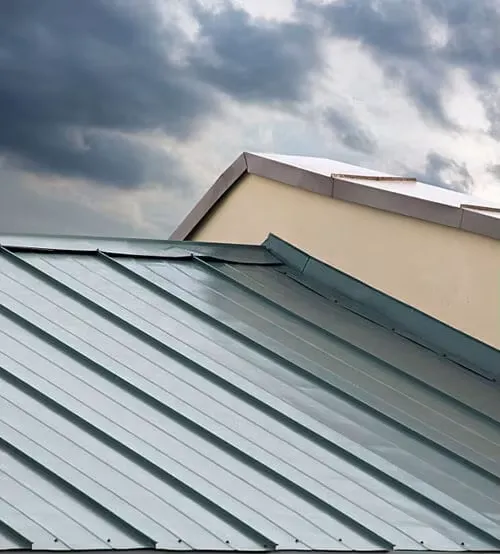

1. Industrial Factories & Logistics Warehouses

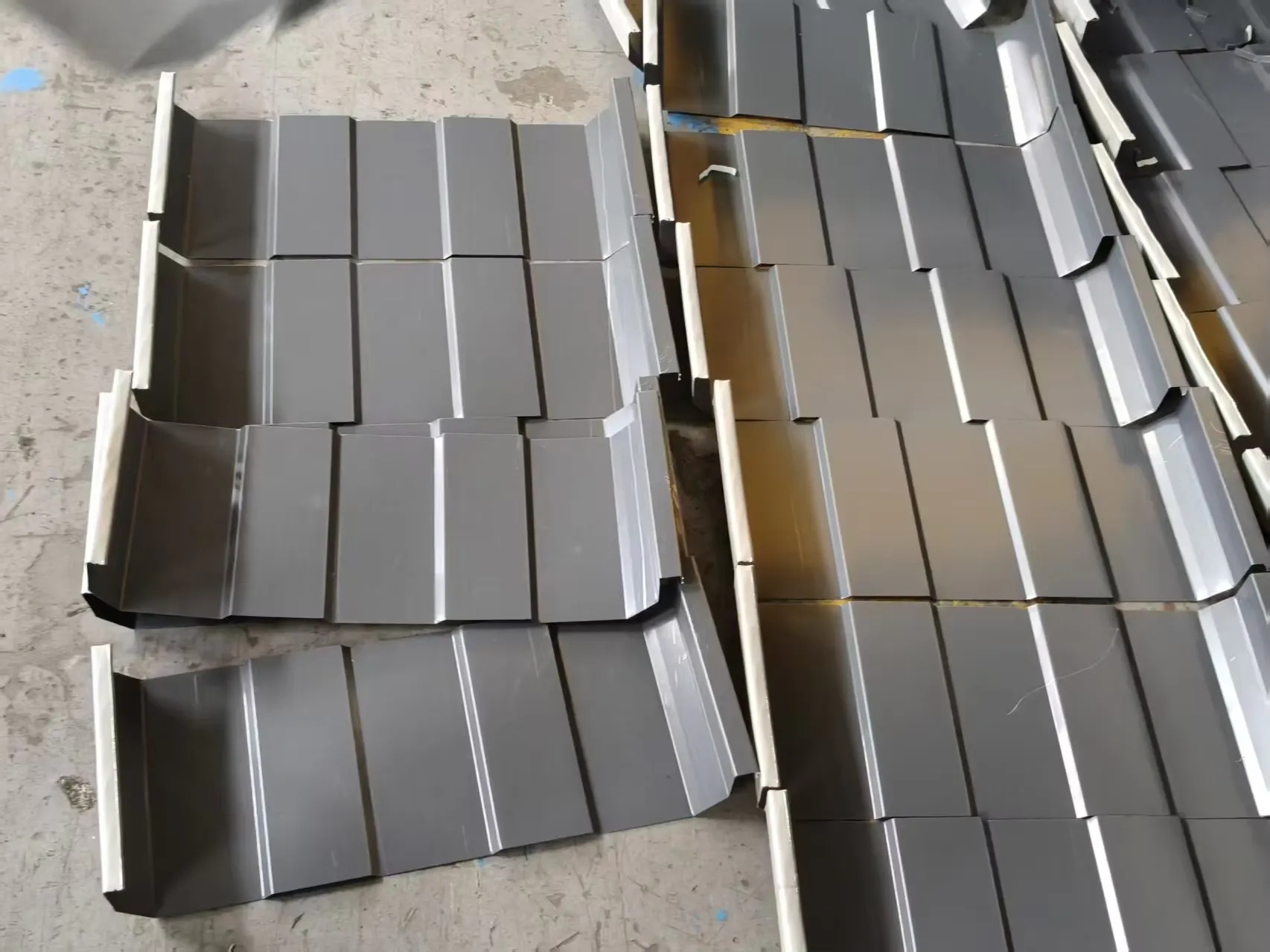

Manufacture waterproof KR18 standing seam roof panels for workshops, storage warehouses and logistics parks.
2. Agricultural Greenhouses & Farm Outbuildings
Process aluminum and color steel roofing sheets for planting greenhouses, barns and livestock sheds.
3. Commercial Buildings & Public Facilities
Produce long-service metal roof panels for shopping malls, exhibition centers and commercial plazas.

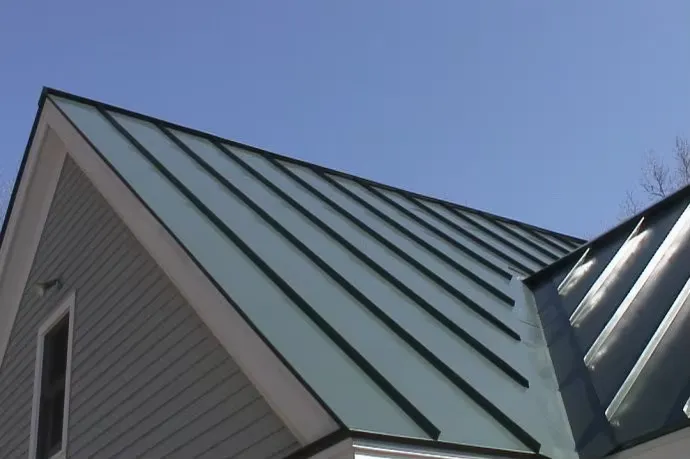

4. Residential Villas & Private Houses
Form lightweight, aesthetic standing seam roofs for high-end villas and residential constructions.
5. Off-Grid Remote Construction Sites
Supported by petrol engine and portable design, suitable for field sites without stable mains power.
