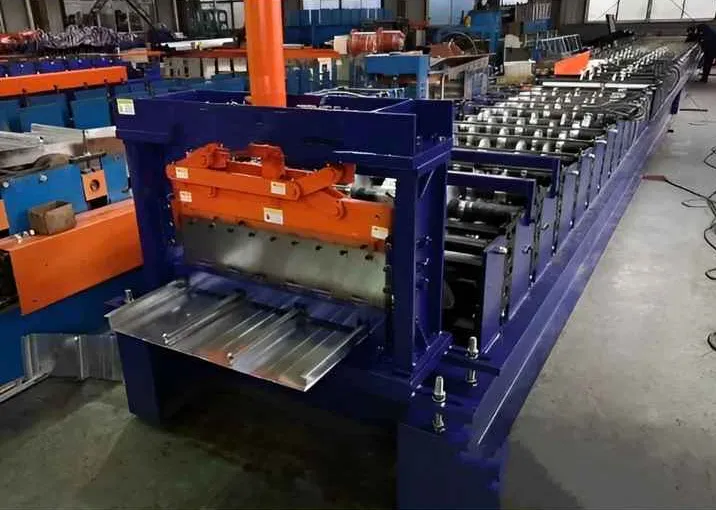

600mm Cover Width Dovetail Composite Floor Decking Roll Forming Machine

Email: info@suhangmachine.com

Tel: 008613606193016

Whatsapp: 8613606193016

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Specification

What Is a Dovetail Deck?

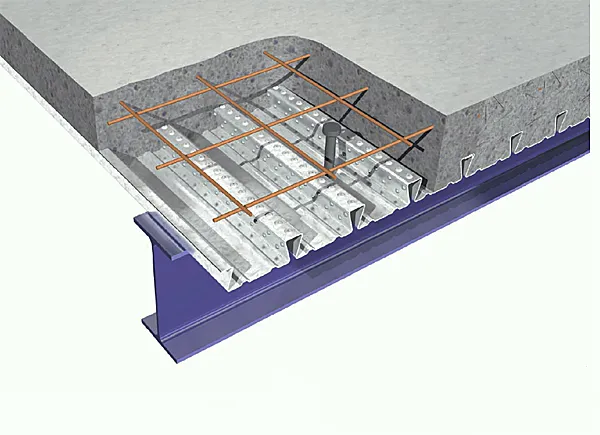

A dovetail deck is a profiled steel decking system used to form a composite concrete floor slab. It consists of galvanized steel sheets with a distinctive dovetail-shaped rib profile. The steel deck acts as permanent formwork during concrete placement and, after the concrete cures, can work together with the concrete to carry structural loads.

The normal machinable thickness range of our steel deck roll forming machine is 0.75-1.2mm, the standard or more used in
international market is Gauge 22, 20, 18, 16 (0.75-1.5mm), working raw material is PPGI, Galvanized steel etc. We confirm machine’s configuration according to your drawing, specially the pitch and height of each wave. Sussman Machinery is always your best choice of metal deck roll forming machine.

Technical Data:

Item NO	Description	Unit\Type	RF-DF
1	Steel Thickness	mm	0.75mm-1.2mm
2	Forming Speed	m/min	0-12 meters/minutes
3	Roller stands	stand	About 30 stations with embossing roller
4	Roller Material		high-grade 45# steel
5	Shaft diameter		Ф90
6	Main Motor Power	Kw	18.5KW
7	Hydraulic cutting Power	Kw	5.5KW
8	Hydraulic pressure	Mpa	12
9	Power Supply		220V, 60HZ,3 phases or 380V,50HZ,3Phases
10	Tolerance	mm	1.5
11	Material of cutting		Cr12mov
12	Control system		PLC with touch screen
13	Drive system		Chain Drive

Machine List:

No	Name	quantity
1	5 Tons Hydraulic Decoiler or manual decoiler	1 set
2	Main Roll Forming Machine	1 set
3	Stop Cutting	1 set
4	Control Box	1 unit
5	Hydraulic Station	1 unit
6	2 meters passive table	2 units
7	Safety Cover	1 set
8	Spare Part	1 Package

Profile Drawings:

Profile depth: 51mm
Cover width: 600mm
Pitch: 200mm
Steel grade: S350 or S450

Types of Dovetail Profiles

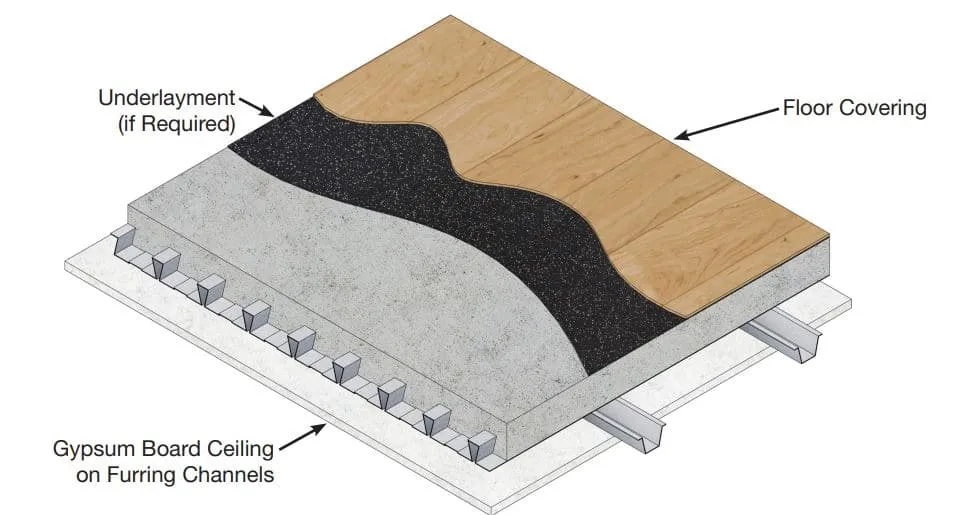

Dovetail decking can generally be classified according to its profile geometry, rib depth, and structural application. Common configurations include:

Type	Description	Typical Application
Shallow dovetail profile	Low-profile ribs with relatively small slab depth	Offices, residential floors and renovation projects
Standard dovetail profile	Conventional dovetail-shaped ribs designed for composite concrete slabs	Commercial and institutional buildings
Deep dovetail profile	Deeper ribs providing greater structural depth and potential spanning capability	Larger floor spans and heavier loading
Narrow-rib dovetail profile	Closely spaced, narrower ribs	Applications requiring a more uniform underside appearance
Wide-rib dovetail profile	Wider rib geometry with larger spacing	Floors requiring particular span or concrete-volume characteristics

Application

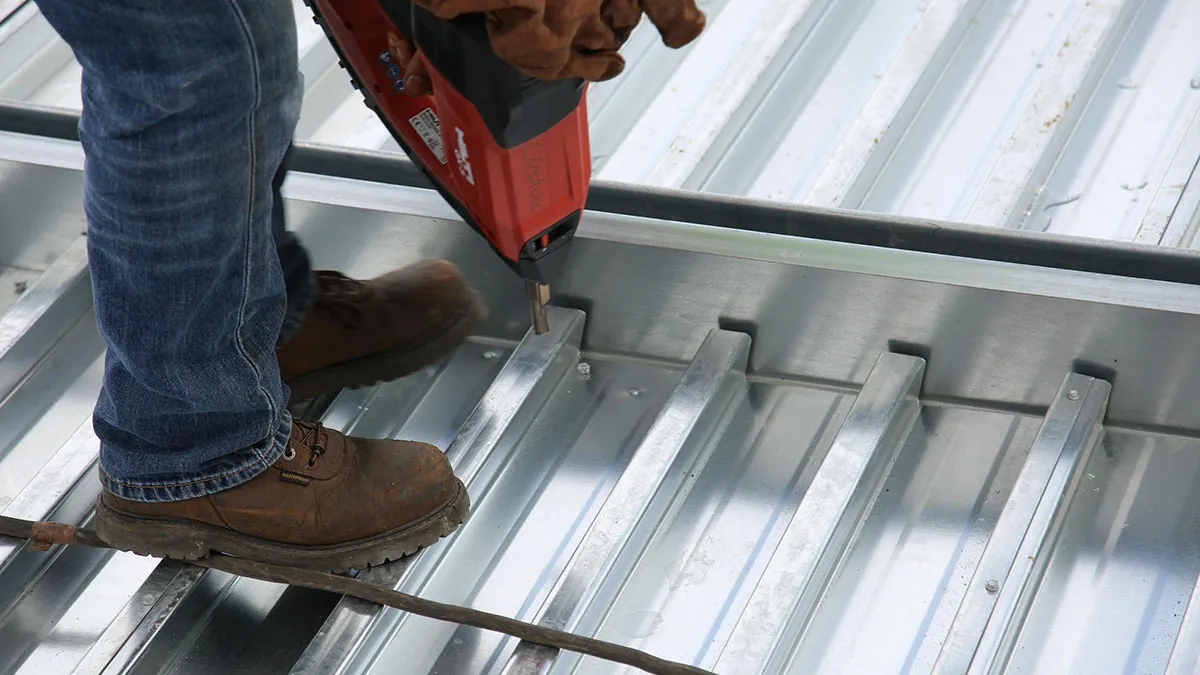

Dovetail composite floor decks are commonly used in:

Commercial and office buildings – floor slabs between steel or concrete structural frames.
Residential and apartment buildings – lightweight floor construction and multi-story structures.
Schools, hospitals, and institutional buildings – efficient floor systems where rapid construction is required.
Industrial and warehouse buildings – mezzanine floors and elevated platforms.
Parking structures – composite floor construction where the system is suitable for the required loads and exposure conditions.
Renovation and infill projects – particularly where lightweight permanent formwork is advantageous.
