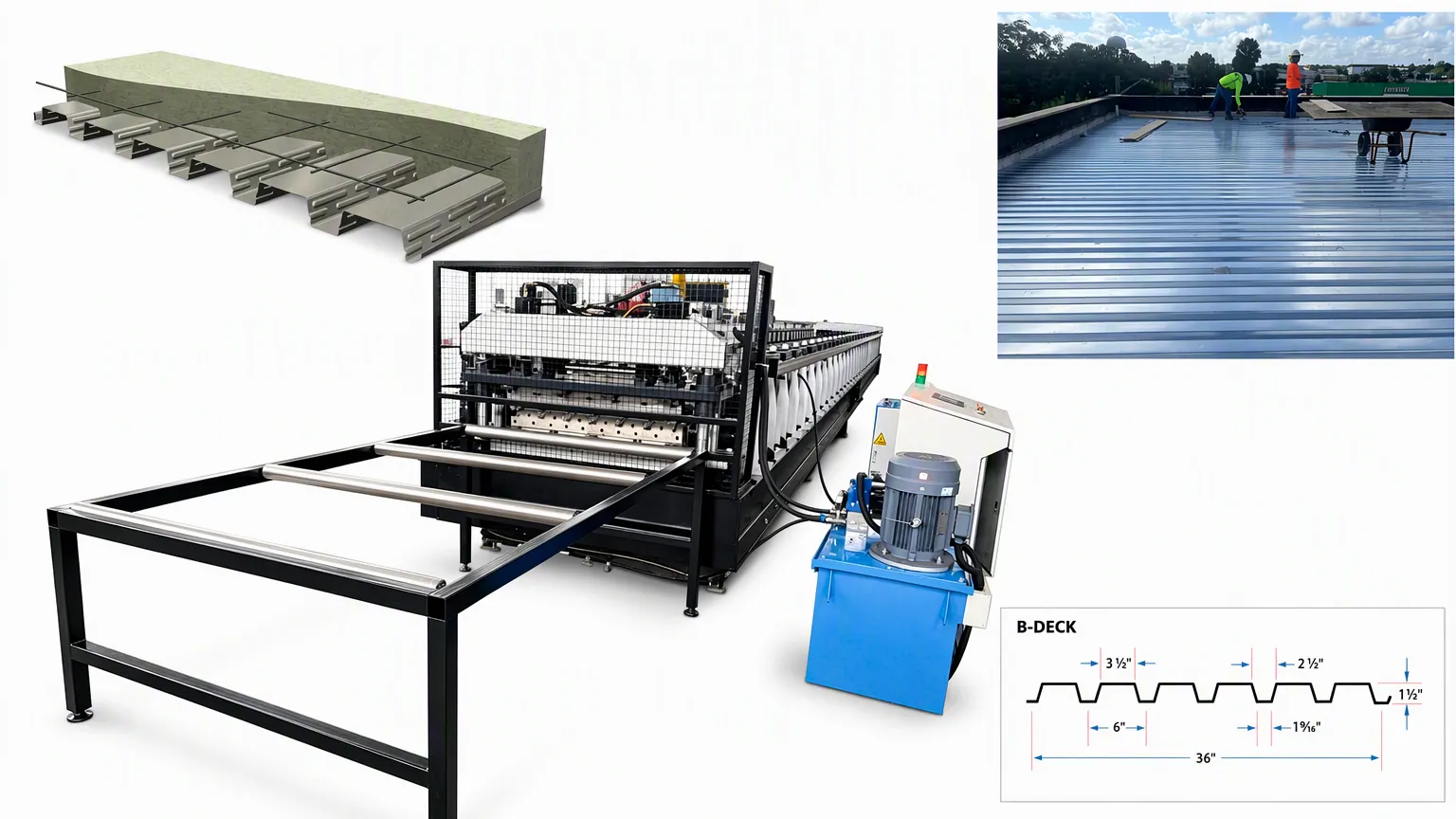

0.8mm-1.5mm Galvanized Steel Industrial Steel Structure Floor Deck Concrete Composite High-Speed B Deck Roll Forming Machine
High‑speed B‑deck roll forming machine processes 0.8‑1.5mm galvanized steel to make composite metal floor deck panels. Full‑automatic PLC control delivers stable, high‑efficiency production with precise cutting length. The produced floor deck sheets are widely used in steel‑structure industrial plants, warehouses, commercial buildings and high‑rise concrete composite floor projects. Custom service is offered for different profile requirements.
Machine List:
|
S.N
|
Equipment name
|
Quantity
|
||
|
1
|
5 ton passive decoiler
|
1 set
|
||
|
2
|
10 tons hydraulic decoiler with coil car(optional)
|
1 set
|
||
|
3
|
Hydraulic pre-cutting device
|
1 set
|
||
|
4
|
Main roll forming machine with embossing rollers
|
1 set
|
||
|
5
|
Hydraulic Cutting Device
|
1 unit
|
||
|
6
|
PLC Control box
|
1 unit
|
||
|
7
|
Hydraulic station
|
1 unit
|
||
|
8
|
Out tables
|
2 units
|
||
|
9
|
Safety cover
|
1 set
|
||
|
10
|
Spare parts
|
1 Package
|
||
Machine Specification:
|
1
|
Material Thickness
|
thickness 0.8mm-1.5mm, Galvanized steel
|
||
|
2
|
Working Speed
|
About 0-30 m/min
|
||
|
3
|
Forming Steps
|
About 33 stations
|
||
|
4
|
Material of Roller
|
Gcr15
|
||
|
5
|
Driven system
|
Gear box
|
||
|
6
|
Main motor power
|
22 KW
|
||
|
7
|
Cutting type
|
Hydraulic Cutting
|
||
|
8
|
Material of cutting
|
Cr12Mov
|
||
|
9
|
Electronic control
|
PLC control
|
||
|
10
|
Hydraulic Station Power
|
7.5 KW
|
||

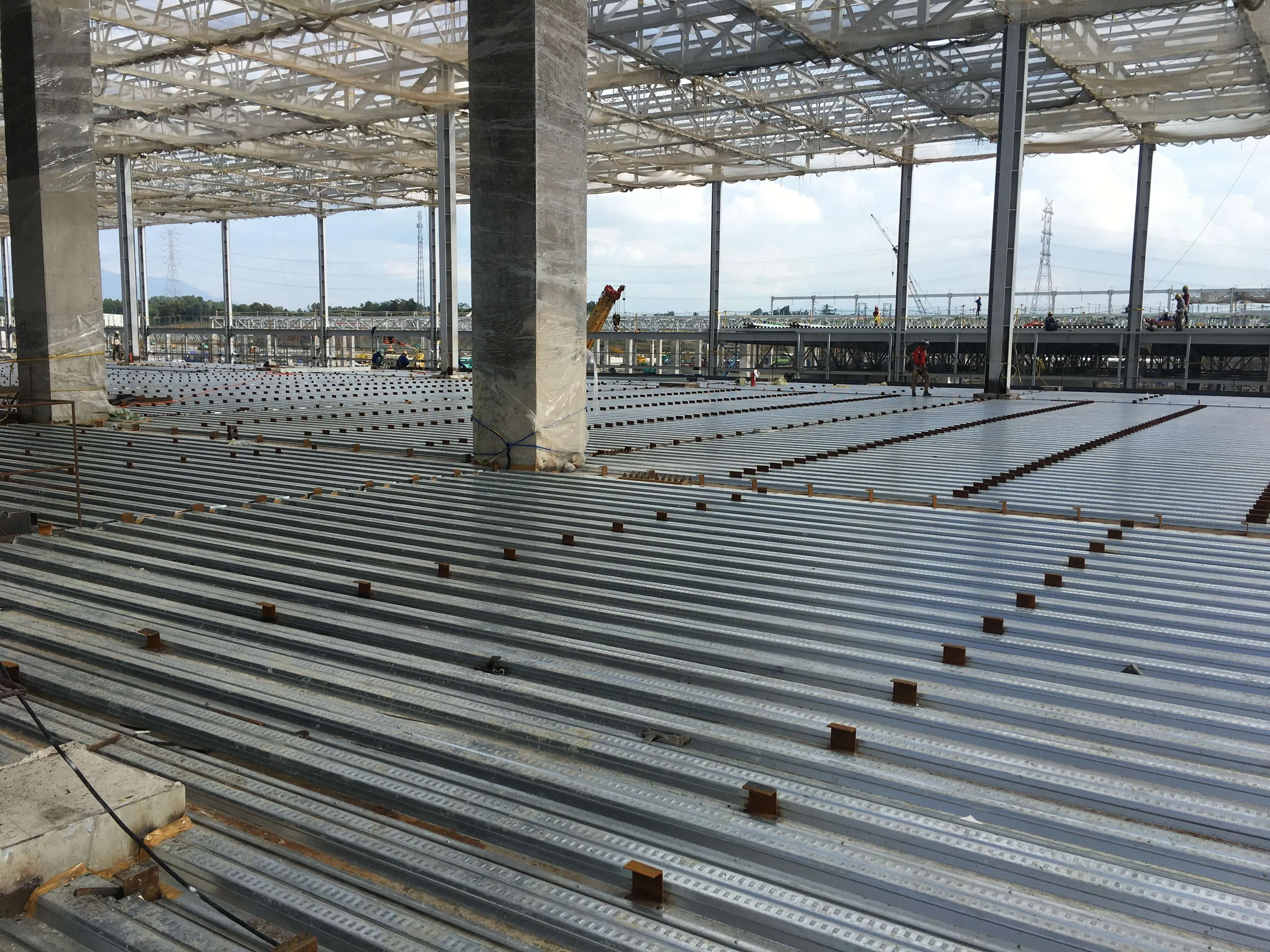

1. Steel‑Structure Factory Workshops
Produce B‑deck panels for load‑bearing composite concrete floors of industrial plants.
2. Large‑Scale Warehouses & Logistics Centers
Ideal for high‑strength floor decking of storage buildings and distribution warehouses.
3. Commercial Shopping Malls & Office Buildings
Suitable for multi‑story composite floors of shopping centers, offices and business complexes.
4. High‑Rise Residential & Apartment Buildings
Used as permanent formwork for concrete floors in high‑rise construction projects.
5. Multi‑Storey Parking Garages
Heavy‑duty metal B‑deck sheets for parking floor bearing‑reinforcement structure.
6. Public & Civic Construction Projects
Floor deck solutions for exhibition halls, stadiums, hospitals and other public buildings.
We promptly handle all equipment issues for customers. Remote technical guidance is available, and professional technicians can be dispatched for on-site commissioning to deliver satisfying service.
2. On-time Delivery Guarantee
Reasonable production schedules are formulated to arrange manufacturing orderly. We strictly control progress to ensure goods delivery as scheduled.
3. Complete Spare Parts Supply
Original matching accessories are fully provided, facilitating daily replacement and maintenance to keep machines running steadily.
4. Strict Quality Inspection
All products undergo multi-standard testing before delivery. Every detail is checked rigorously to guarantee reliable overall equipment quality.
5. Cost-effective On-site Matching
Fit construction demands of multiple regions, lower production cost and improve project construction efficiency.
