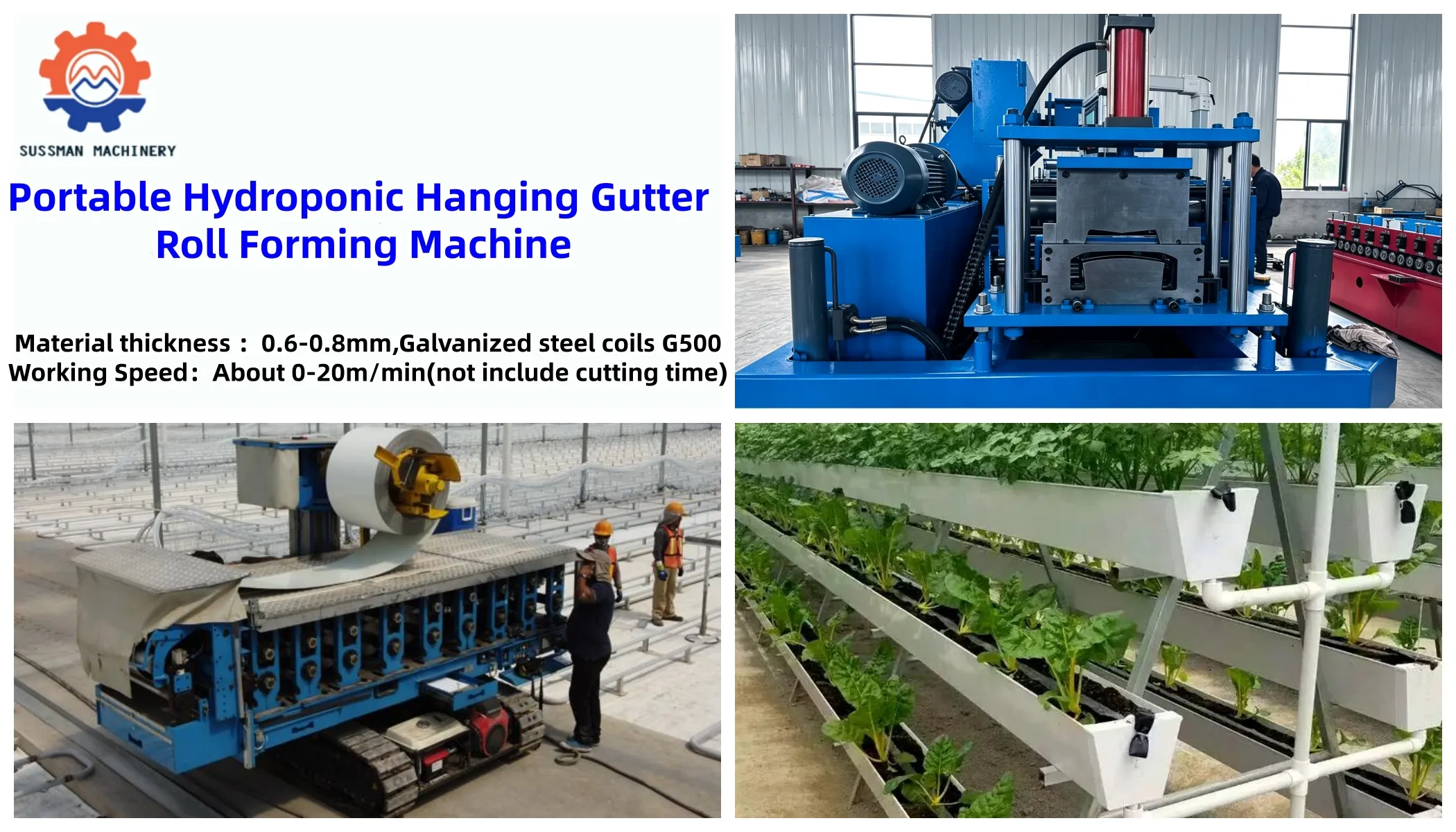

This hydroponic hanging gutter roll forming machine is equipped with a portable tank‑driven system. It is specially designed for on‑site production of agricultural greenhouse growing channels from 0.6‑0.8mm G500 galvanized steel coils. Thanks to the mobile tank power unit, the whole machine can be transported to your greenhouse farm directly and produce unlimited‑length hydroponic gutters on site.

1	Material Thickness	thickness 0.6mm-0.8mm,Galvanized steel coils G500
2	Working Speed	About 0-20m/min(not include cutting time)
3	Forming Steps	About 8 stations
4	Material of Roller	45#forge steel, coated with chrome
5	Driven system	By chain
6	Main motor power	7.5 KW
7	Cutting type	Hydraulic cutting
8	Material of cutting	Cr12Mov with quench HRC58-62°
9	Electronic control	PLC control
10	Hydraulic Station Power	11 kw

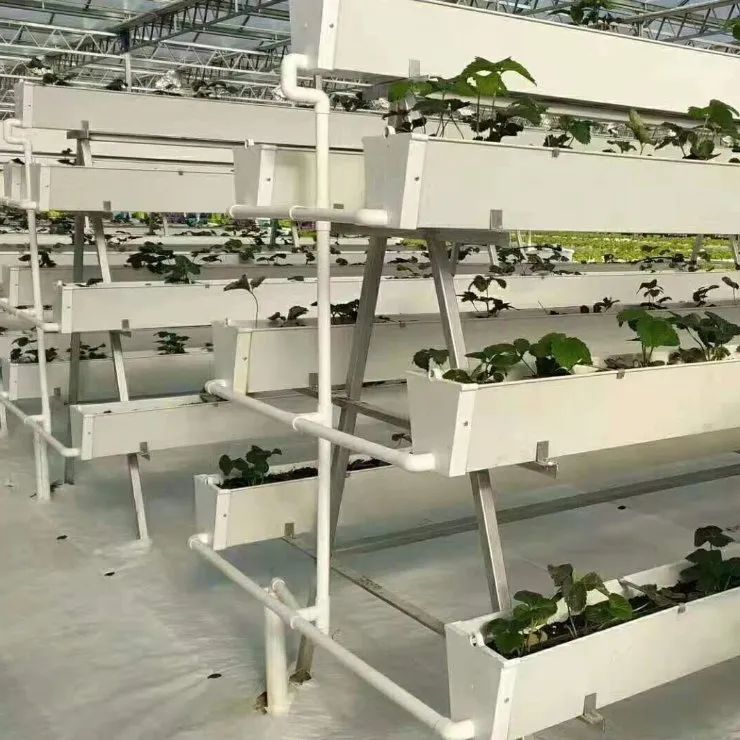

1. Commercial Strawberry Hydroponic Farms
Manufacture hanging growing gutters for suspended‑type strawberry soilless cultivation in large‑scale greenhouses.

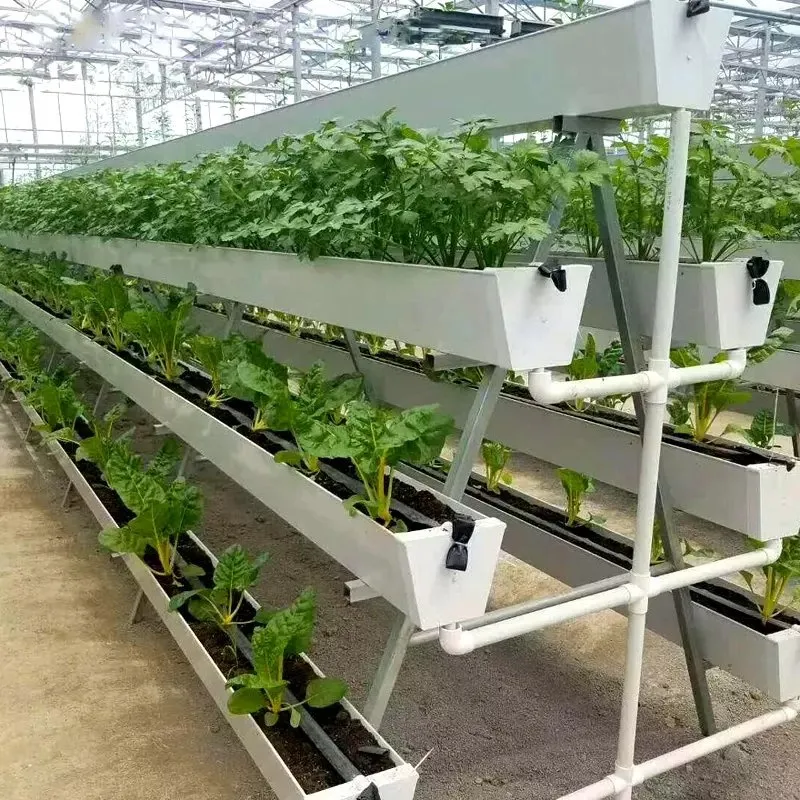

2. Tomato & Fruit‑Vegetable Greenhouse Projects
Produce long hydroponic channels for cherry tomato, cucumber and other vine‑plant hanging planting systems.

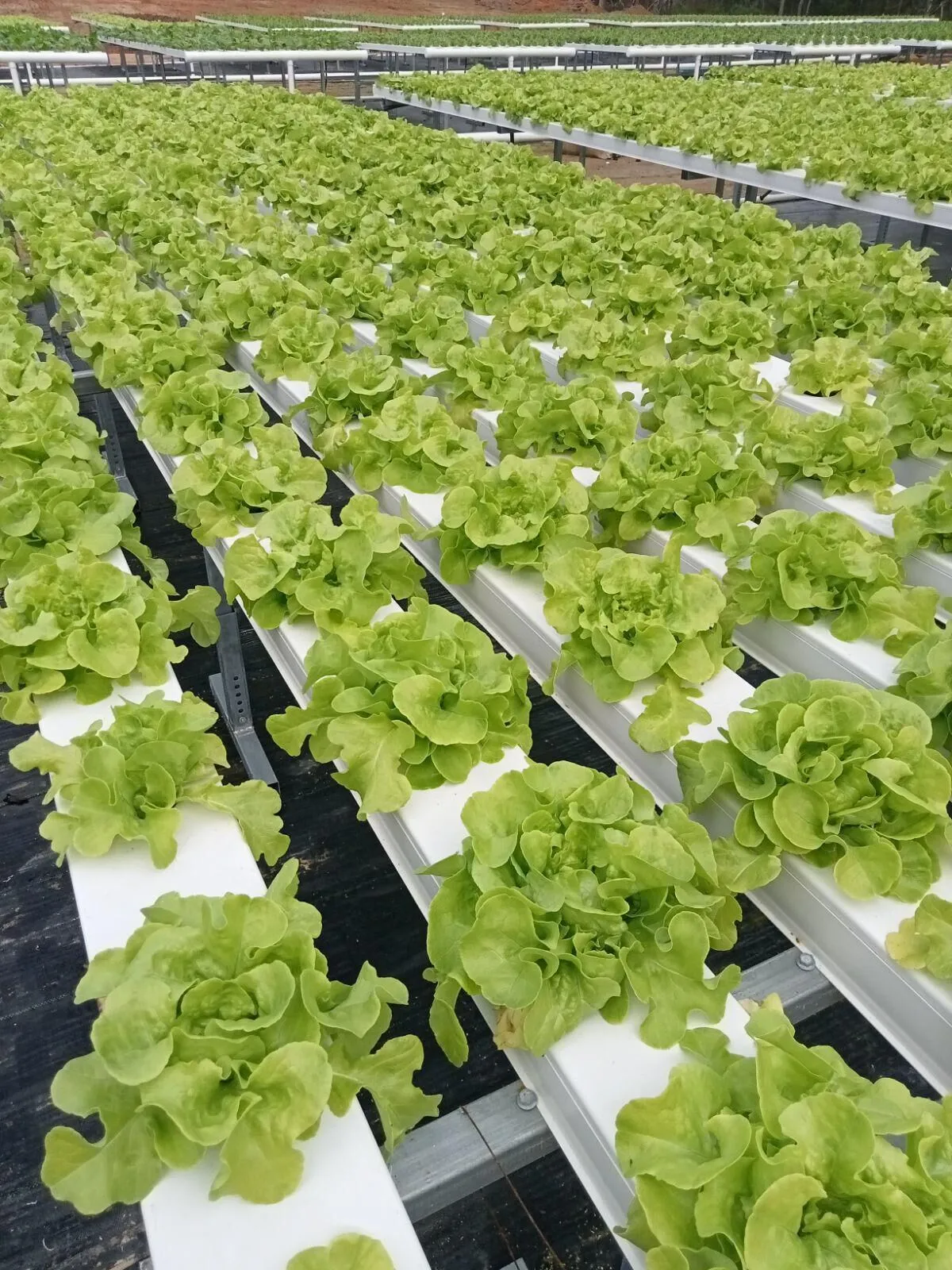

3. Leafy Vegetable Hydroponic Cultivation
Supply galvanized hanging gutters for lettuce, spinach, herbs and other leaf‑vegetable multi‑layer growing.

4. Custom Agricultural Greenhouse Upgrading
On‑site production of unlimited‑length hydroponic troughs with the portable tank‑driven mobile system, no workshop restriction.

5. Large‑Scale Hydroponic System Contractors
Ideal equipment for greenhouse engineering companies to fabricate hanging gutter channels on farm location, save long‑distance gutter transport cost.



Solution Advantages

1. Comprehensive After-sales Service
We promptly handle all equipment issues for customers. Remote technical guidance is available, and professional technicians can be dispatched for on-site commissioning to deliver satisfying service.


2. On-time Delivery Guarantee
Reasonable production schedules are formulated to arrange manufacturing orderly. We strictly control progress to ensure goods delivery as scheduled.


3. Complete Spare Parts Supply
Original matching accessories are fully provided, facilitating daily replacement and maintenance to keep machines running steadily.


4. Strict Quality Inspection
All products undergo multi-standard testing before delivery. Every detail is checked rigorously to guarantee reliable overall equipment quality.
