Gutter Roll Forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Specifications



Specification

1. Suitable Plate Material: thickness 0.5-0.6mm, Galvanized steel or blank steel
2. Working Speed: 12-15 meters / min
3. Forming Steps: 18 stations
4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
6. Driven system: Chain Driven 1.5 inches 20A
7. Main Power with reducer: 7.5KW WH Chinese Famous
8. Cutting: Hydraulic Cutting Cr12mov
9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
10. Hydraulic Station Power: 4KW Wuxi Wanshen Famous Chinese Brand
11. The whole machine is controlled by industry computer-PLC.
12. PLC--Delta, Japan English and Chinese Language
13. Touch Screen--Delta
14. Encoder--Omron, Japan

15. Electric parts--Schneider

We could make machine solution for Round Gutter, Square Gutter, Flume Gutter, Gutter Sheet or according to your profile drawing.

We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need.

Profile drawings:





Optional Configuration For Your Choice
  • Decolier
    Double Heads Decoiler
    A type decoiler
    Manual Decoiler
    Hydraulic Decoiler


  • Structure
    Wall panel
    Torri Structure
    Cast Iron

  • Drive
    Chain
    Gear
    Gearbox
    Couplings Gearbox


  • Cooling
    Water cooling
    Fan cooling

  • Punching
    Hydraulic punching
    Hydraulic press
    Punching press

  • Cutting
    Hydraulic stop cutting
    Servo Following Cutting
    Stop Saw cutting
    Fly saw cutting


  • Out table
    Manual table
    Simple pneumatic table
    Automatic stacker
    Magnetic stacker


  • Other
    Cassette
    Plastic film
    Fleece devce
    Pre-cutting





What is Sussman's machine different from other suppliers?



What's Sussman's machine different from other suppliers?



The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:



Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery



Other suppliers

Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use.  The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.
Sussman Machinery

Other suppliers

Sussman roll forming system

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The  machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.




Sussman Machinery's safety cover
The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.
Sussman Machinery
Other suppliers

Roof tile box
Sussman Machinery
Other suppliers

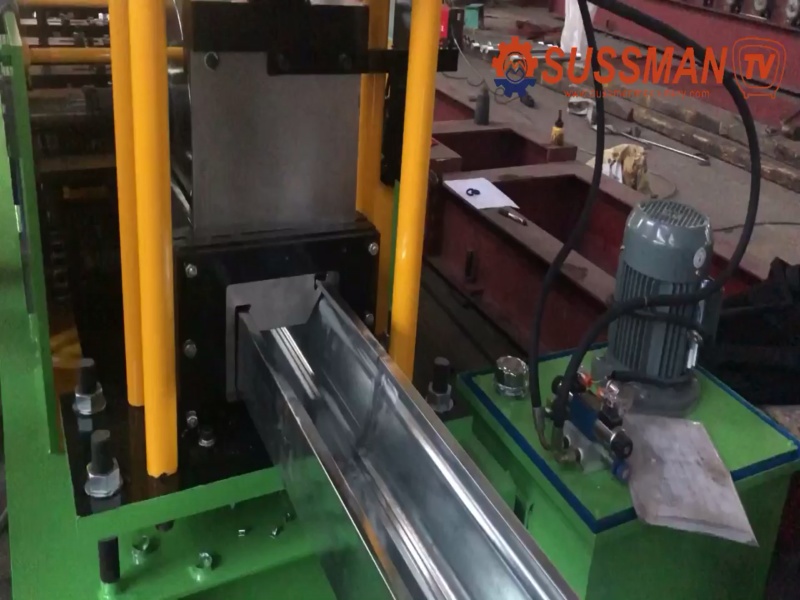

Hydraulic cutting
Sussman Machinery
Other suppliers


Application
A rain gutter also known as a "rain catcher", is a narrow channel, or trough, forming the component of a roof system which collects and diverts rainwater away from the roof edge.
The main purpose of a rain gutter is to protect a building's foundation by channeling water away from its base. The gutter also helps to reduce erosion, prevents leaks in basements and crawlspaces, protects painted or stained surfaces by reducing exposure to water,and provides a means to collect rainwater for later use.
Gutters are also very effective at keeping building egress areas clear of falling water. Going into a house entrance below water running straight off the roof in a heavy down pour is literally like taking a shower. This major reduction in moisture also helps to keep entrance surfaces dry and free of moss, slime, algae and other growths likely to cause slips.
Rain gutters can be made from a variety of materials such as cast iron, lead, zinc, galvanised steel, painted steel, copper, paintedaluminium, PVC (and other plastics), concrete, stone, and wood.
Water collected by a rain gutter is fed, usually via a downspout or "downpipe" (traditionally called a leader or conductor), from the roof edge to the base of the building where it is either discharged or collected.Water from rain gutters may be collected in arain barrel or a cistern.

  •
  •
